RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm

Product Categories

UN.Tex (Dalian) Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

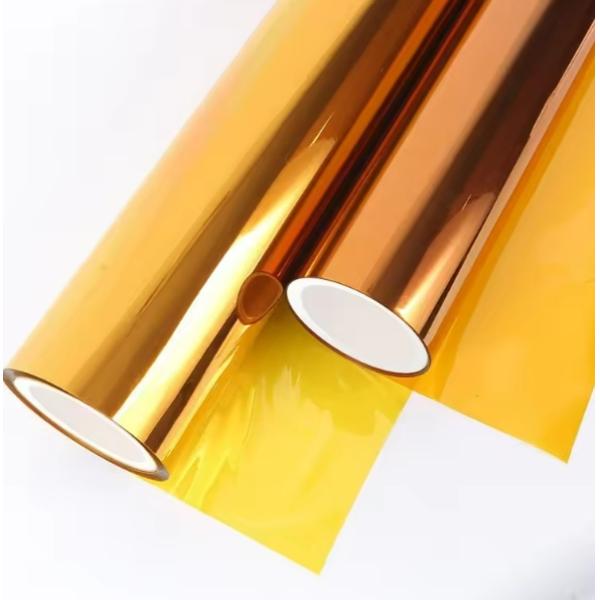

RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm

Model Number : K2321

Certification : RoHS

Place of Origin : CHINA

MOQ : 500m2

Price : Usd1~5/roll

Payment Terms : L/C,T/T

Supply Ability : 50,000m2 per month

Delivery Time : 35 working days

Packaging Details : Export carton case

Temperature Range : -73℃ to 260℃

Adhesion : ≥1.8N/10mm

Base Material Thickness Options : 7.5 µm, 12.5 µm, 25 µm, and 50 µm

Features : Polyimide Film Adhesive Tape

BDV : ≥2.0KV

Material : Polyimide Film

Versatile Applications : Electronics: PCB insulation, coil wrapping, and component protection. Semiconductors: Masking during etching or plating processes. Industrial: High-temperature masking, motor insulation, and aerospace assemblies.

Tensile Strength : ≥25N/10mm

Mechanical Strength : Good

Chemical Stability : Good

Contact Now

Description:

The Polyimide Film Adhesive Tape is engineered to deliver exceptional performance in extreme environments, combining outstanding resistance to high and low temperatures, excellent electrical insulation properties, superior chemical stability, and high mechanical strength.

Features:

Product Name: Polyimide Film Adhesive Tape
Standard Roll Length: 33 meters
Temperature Range: -73℃ to 260℃
Thickness: 30um~100um
Working temp.: 180℃ (long Term)
Tensile Strength: ≥25N/10mm
Adhesion: ≥1.8N/10mm
Attributes: Excellent balance of electrical, chemical and physical property, low & high temperature resistant, Polyimide Film

Technical Parameters:

Product Attribute	Details
RoHS Compliant	Yes
Product Name	Pressure Sensitive Silicone Adhesive PI Tape For PCB With High Elongation And Adhesive
Color	Amber
Adhesion	≥1.8N/10mm
Temperature Range	-73℃ to 260℃
Base Material Thickness Options	7.5 µm, 12.5 µm, 25 µm, and 50 µm
Tensile Strength	≥25N/10mm

Applications:

Electrical Insulation:Widely utilized in electrical and electronic applications owing to its superior insulating properties. It is especially suited for wrapping wires, cables, and electrical components, delivering reliable insulation along with protection against heat and electric currents.
PCB Manufacturing:Frequently applied in the production of printed circuit boards (PCBs). Its combination of high-temperature resistance and strong adhesive quality makes it well-suited for masking and safeguarding PCBs throughout the manufacturing process.
General Industrial Use:Ideal for a variety of industrial settings that demand thermal conductivity, flexibility, and insulation. It performs effectively in tasks such as sealing, splicing, and bundling across diverse industrial environments.

RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm
